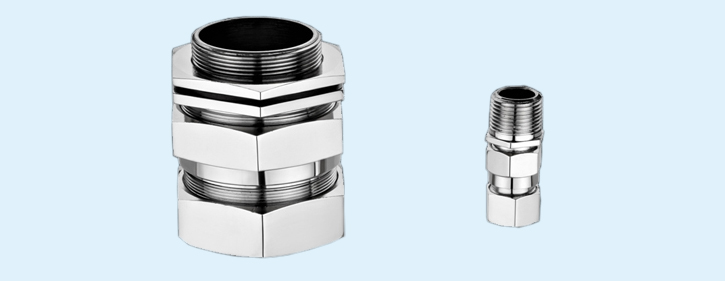

Weather Proof DC Cable Gland

Weather Proof DC Cable Gland


These glands are use under most climatic conditions & Generally for Armored Cable & Outdoor use. These are Weather proof and may be used in the corrosive condition when protected by shroud, It provides environmental seal for inner & outer sheath of cables. The cable glands also provides mechanical cable retention and electrical continuity via armor wire termination. This glands are suitable for all types of cables like armour, Unarmour, Power, Instrumention, XLPE etc..

SIZE AEWP01SSA TO AEWP 016
ENTRY THREAD BSC ET ,ALTERNATE THREAD : NPT, PG, METRIC, BSP
ENTRY THREAD RANGE 1/2" TO 4.5 “ OR M12 TO M110
GLAND MATERIAL BRASS (IS-319)
ALTERNATE MATERIAL ALUMINIUM, S.S, M.S
OPERATING TEMPERATURE -30 C TO +100 C
FINISH NICKEL PLATED, TIN, CHROME
SEAL MATERIAL NATURAL / NITRILE
SEAL SHORE HARDNESS 50 - 60
ACCESSORIES SHROUD, EARTH TAG, STOPPER, REDUCER, ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST)
GLAND STANDARD BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
INGRESS PROTECTION IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014)
APPROVAL SECURE AEWP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD

Gland Consist Of Following Parts:

  • LOCK NUT
  • ENTRY SEAL RING
  • GLAND NIPPLE
  • INNER SEAL RING
  • ARMOUR CLAMPING RING
  • GLAND BODY
  • OUTER SEAL
  • COMPRESSION NUT
  • SKID WASHER

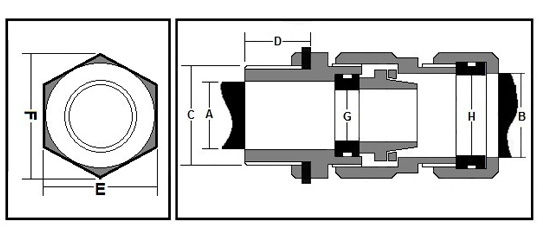

No. SIZE DNGWP SERIES H G E E C D CABLE DIMENSIONS
(THREAD)
(A/F) (A/C) ET MM (THREAD
LENGTH)		 A UNDER ARMOUR DIA  B OVER ALL DIA
1 DNGWP 01SSA 12.00 8.50 19.50 22.50 1/2"ET M12 15 8.00 10.0
2 DNGWP 01SS 14.00 9.00 22.00 25.00 3/4"ET M20 15 8.00 12.5
3 DNGWP 01S 17.50 11.00 25.00 29.00 3/4"ET M20 15 10.00 16.5
4 DNGWP 01 19.50 14.50 27.50 32.00 3/4"ET M20 15 12.50 18.5
5 DNGWP 01A 19.50 14.50 27.50 32.00 1"ET M25 15 12.50 18.5
6 DNGWP 02 21.00 16.00 29.00 34.00 1"ET M25 15 14.00 20.0
7 DNGWP 02A 21.00 16.00 29.00 34.00 3/4"ET M20 15 14.00 20.0
8 DNGWP 03 23.50 18.00 31.00 36.00 1"ET M25 15 16.00 23.0
9 DNGWP 04 27.50 21.00 37.00 43.00 1"ET M25 15 19.00 26.0
10 DNGWP 04A 27.50 21.00 37.00 43.00 1.1/4"ET M32 15 19.00 26.0
11 DNGWP 05 31.50 25.00 41.00 47.00 1.1/4"ET M32 15 23.00 30.0
12 DNGWP 05A 31.50 25.00 41.00 47.00 1.1/2"ET M40 15 23.00 30.0
13 DNGWP 06 34.00 28.00 46.00 53.00 1.1/2"ET M40 15 26.00 33.0
14 DNGWP 06A 34.00 28.00 46.00 53.00 1.1/4"ET M32 15 26.00 33.0
15 DNGWP 07 38.00 31.00 50.50 58.00 1.1/2"ET M40 15 29.00 37.0
16 DNGWP 08 42.00 36.00 56.00 64.00 2"ET M50 15 34.00 41.0
17 DNGWP 09 47.00 41.00 59.00 67.00 2"ET M50 15 39.00 46.0
18 DNGWP 010 53.00 45.00 66.00 76.00 2"ET M50 20 43.00 52.0
19 DNGWP 010A 53.00 45.00 66.00 76.00 2.1/2"ET M63 20 43.00 52.0
20 DNGWP 011S 57.50 51.00 74.00 85.00 2.1/2"ET M63 20 49.00 56.0
21 DNGWP 011 61.50 55.00 79.00 92.00 2.1/2"ET M63 20 53.00 60.0
22 DNGWP 012 68.00 62.00 84.00 97.00 3"ET M75 20 60.00 66.0
23 DNGWP 013A 74.00 67.00 90.00 103.00 3"ET M75 20 65.00 72.0
24 DNGWP 013 79.00 73.00 99.00 113.00 3.1/4"ET M82 20 71.00 78.0
25 DNGWP 014 86.00 80.00 105.00 122.00 3.1/4"ET M90 20 78.00 84.0
26 DNGWP 015 96.00 89.00 116.00 134.00 4"ET M100 20 87.00 94.0
27 DNGWP 016 106.00 103.00 130.00 150.00 4.1/2"ET M110 25 100.00 104.0
