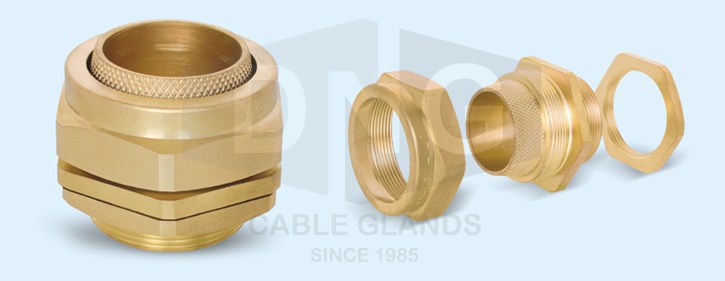

BW Type Cable Glands
BW Type Cable Glands
| Size | 20 mm to 90 mm |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temperature | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
TECHNICAL DATA
| Size | Thread Size 'C' | Minimum Length of Thread 'D' | Cable Range | ||
|---|---|---|---|---|---|
| MM | INCH | MAX 'A' | MAX 'B' | ||
| BW 20S | 20 | 3/4 | 10 | 13.00 | 15.50 |
| BW 20L | 20 | 3/4 | 10 | 14.00 | 18.50 |
| BW 25L | 25 | 1 | 10 | 20.50 | 26.00 |
| BW 32L | 32 | 1.1/4 | 10 | 27.00 | 33.90 |
| BW 40L | 40 | 1.1/2 | 15 | 33.00 | 41.50 |
| BW 50S | 50 | 2 | 15 | 38.50 | 47.00 |
| BW 50L | 50 | 2 | 15 | 44.00 | 52.00 |
| BW 63S | 63 | 2.1/2 | 15 | 51.00 | 59.20 |
| BW 63L | 63 | 2.1/2 | 15 | 56.50 | 65.50 |
| BW 75S | 75 | 3 | 15 | 63.00 | 74.00 |
| BW 75L | 75 | 3 | 15 | 68.50 | 79.50 |
| BW 90L | 90 | 3.1/2 | 20 | 80.50 | 91.00 |

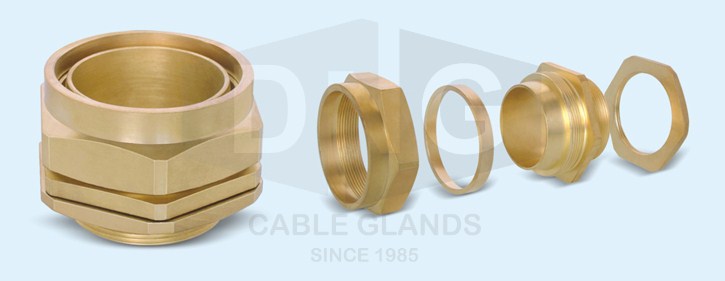

BW 4 PART CABLE GLAND
| Size | 20 mm to 90 mm S & L |
|---|---|
| Standard | BS 6121 |
| Application | Dry Indoor, for use with all types of SWA Cable |
| Function | Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
| Material | Brass BS 2874 CZ121 Pb3 |
| Optional Threads | METRIC, NPT, BSP, PG or as specified |
| Finish | Brass Finish, Nickel Finish, Chrome Finish or as specified |
| Operating Temperature | -800 C to +3000 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
TECHNICAL DATA
| Size | Thread | Length | A | B | A/F | A/C |
|---|---|---|---|---|---|---|
| 20S | M20 | 10.00 | 13.00 | 18.00 | 23.50 | 26.00 |
| 20L | M20 | 10.00 | 14.00 | 21.00 | 25.00 | 28.00 |
| 25S | M25 | 10.00 | 18.00 | 24.00 | 31.00 | 35.50 |
| 25L | M25 | 10.00 | 20.50 | 27.00 | 33.00 | 37.00 |
| 32S | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
| 32L | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
| 40S | M40 | 13.00 | 31.50 | 39.50 | 45.50 | 50.50 |
| 40L | M40 | 13.00 | 33.00 | 41.50 | 49.00 | 55.00 |
| 50S | M50 | 13.00 | 39.50 | 48.50 | 56.50 | 63.50 |
| 50L | M50 | 13.00 | 44.50 | 54.50 | 62.50 | 70.50 |
| 63S | M63 | 14.00 | 50.20 | 59.20 | 68.80 | 77.00 |
| 63L | M63 | 13.50 | 56.50 | 65.50 | 76.00 | 86.00 |
| 75S | M75 | 15.00 | 63.50 | 72.00 | 84.00 | 94.50 |
| 75L | M75 | 15.00 | 69.50 | 78.50 | 90.00 | 101.00 |
| 90S | M90 | 20.00 | 76.00 | 85.00 | 100.00 | 111.20 |
| 90L | M90 | 18.00 | 78.40 | 90.50 | 103.00 | 115.00 |
