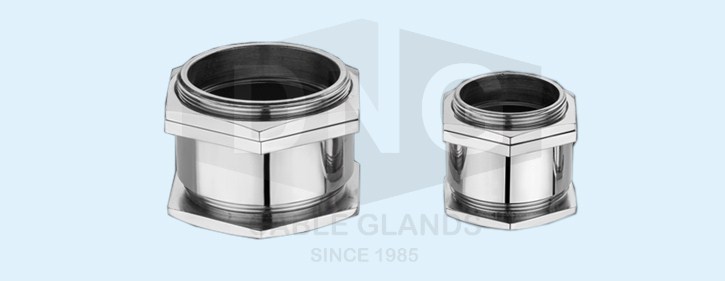

Single Compression Heavy Duty Cable Gland

Single Compression Heavy Duty Cable Gland


These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.

SIZE 3/8”- 10 MM To 4”-100 MM
ENTRY THREAD ET
ALTERNATE THREAD METRIC, NPT, PG, METRIC, BSP
GLAND MATERIAL BRASS (IS-319)
ALTERNATE MATERIAL ALUMINIUM, S.S, M.S
OPERATING TEMPERATURE -30 C TO +100 C
FINISH NICKEL PLATED
ALTERNATE FINISH TIN , CHROME
SEAL MATERIAL NATURAL / NITRILE
ACCESSORIES SHROUD, EARTH TAG (SUPPLIED SEPARATELY UPON REQUEST)
GLAND STANDARD IS-12943
INGRESS PROTECTION IP 55

Gland Consist Of Following Parts:

  • LOCK NUT
  • GLAND BODY
  • GLAND BUSH
  • MS WASHER (3 NOS)
  • RUBBER SEAL

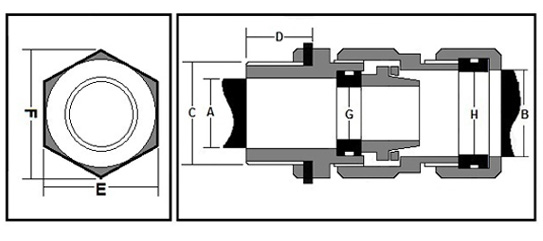

  No.   SIZE
   A/F   A/C   D1
BUSH
ID 		  D3
ENTRY
ID		   D2
RUBBER
ID 		  C
(THREAD)		   D
CABLE DIMENSION
A
UNDER
ARMOUR DIA
B
OVERALL
DIA
1 DNG 1 22.0 25.0 16.0 12.0 12.0 M16x1.5 9.00 11.0 14.0
2 DNG 2 25.0 29.0 18.5 12.0 15.0 M16x1.5 9.00 11.0 16.5
3 DNG 3 25.0 29.0 18.5 15.0 15.0 M20x1.5 9.00 14.0 16.5
4 DNG 4 29.5 34.0 23.0 15.0 18.0 M20x1.5 9.50 14.0 21.0
5 DNG 5 29.5 34.0 23.0 21.0 20.0 M25x1.5 9.50 20.0 21.0
6 DNG 6 35.0 40.5 28.0 21.0 24.0 M25x1.5 10.0 20.0 24.0
7 DNG 7 40.0 46.0 33.0 27.0 28.0 M32x1.5 12.0 26.0 31.0
8 DNG 8 46.0 53.0 37.0 33.0 32.0 M40x1.5 12.0 32.0 35.0
9 DNG 9 49.0 57.0 41.0 33.0 37.0 M40x1.5 12.0 32.0 39.0
10 DNG 10 58.0 67.0 47.0 44.0 42.0 M50x1.5 13.0 43.0 45.0
11 DNG 11 65.0 75.0 52.0 44.0 48.0 M50x1.5 13.0 43.0 50.0
12 DNG 12 73.0 84.0 61.0 55.0 54.0 M63x1.5 14.0 54.0 59.0
13 DNG 13 76.5 89.0 64.5 55.0 60.0 M63x1.5 14.0 54.0 62.5
14 DNG 14 85.0 98.0 71.0 66.0 66.0 M75x1.5 15.0 65.0 69.0
15 DNG 15 90.0 104.0 76.0 66.0 72.0 M75x1.5 15.0 65.0 74.0
16 DNG 16 96.5 112.0 82.5 73.0 78.0 M82x1.5 17.0 72.0 80.5
17 DNG 17 108.0 124.0 91.0 81.0 84.0 M90x1.5 19.0 80.0 89.0
18 DNG 18 117.0 135.0 98.0 91.0 92.0 M100x2.0 20.0 90.0 96.0
19 DNG 19 127.0 146.0 107.0 100.0 100.0 M110x2.0 25.0 99.0 105.0
20 DNG 20 142.0 >164.0 118.0 113.0 115.0 M125x2.0 25.0 112.0 116.0
