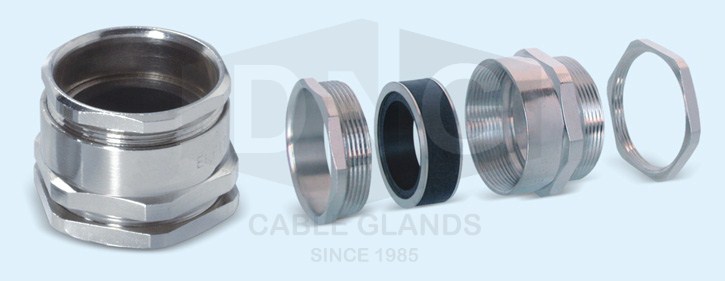

Pg Cable Gland with (IP-65 Protection)
Pg Cable Gland with (IP-65 Protection)
| Size | PG 7 to PG 48 |
|---|---|
| Standard | EN 50262 : 1999 |
| Application | Outdoor or Indoor for use with all types of Unarmoured Cable |
| Function | Provide Seal on Outer Sheath of the Unarmoured Cable |
| Ingress Protection | IP65 |
| Material | Brass BS 2874 CZ121 Pb3 |
| Finish | Chrome Finish, Brass Finish, Nickel Finish or as specified |
| Thread | PG and also available in Metric Threads on request |
| Seals | Neoprene Material |
| Operating Temperature | -200 C to +800 C |
| Accessories | Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
TECHNICAL DATA
| Size | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| PG-7 | 14.00 | 15.50 | 20.50 | PG-7 | 10.00 | 5.00 | 150 |
| PG-9 | 18.00 | 20.00 | 23.50 | PG-9 | 12.50 | 6.00 | 150 |
| PG-11 | 20.00 | 22.00 | 26.50 | PG-11 | 15.00 | 6.50 | 150 |
| PG-13 | 23.00 | 25.00 | 27.00 | PG-13 | 16.75 | 7.10 | 150 |
| PG-16 | 25.00 | 27.80 | 28.00 | PG-16 | 18.50 | 6.50 | 150 |
| PG-21 | 31.00 | 34.00 | 31.00 | PG-21 | 24.10 | 7.10 | 150 |
| PG-29 | 41.50 | 45.20 | 34.00 | PG-29 | 32.10 | 8.50 | 150 |
| PG-36 | 51.00 | 56.50 | 40.00 | PG-36 | 43.00 | 10.00 | 150 |
| PG-42 | 58.50 | 63.75 | 43.00 | PG-42 | 47.50 | 10.00 | 150 |
| PG-48 | 64.00 | 70.50 | 47.00 | PG-48 | 52.25 | 10.00 | 150 |
