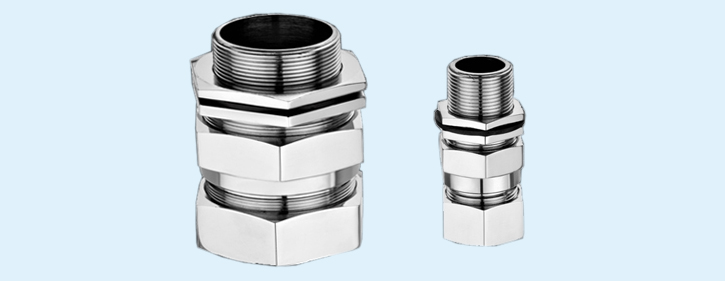

Flame Proof DC Cable Gland IIA & IIB

Flame Proof DC Cable Gland IIA & IIB


Flame Proof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are suitable for all types of cables like Armour , Unarmour, Power, Instrumention, XLPE etc.

SIZE AEFP01SSA TO AEFP 016
ENTRY THREAD METRIC
ALTERNATE THREAD NPT, BSC ET, PG, METRIC, BSP
ENTRY THREAD RANGE 1/2" TO 4.5" OR M12 TO M110
GLAND MATERIAL BRASS (IS-319)
ALTERNATE MATERIAL ALUMINIUM, S.S, M.S
OPERATING TEMPERATURE -30 C TO +100 C
FINISH NICKEL PLATED
ALTERNATE FINISH TIN, CHROME
SEAL MATERIAL NEOPRENE / SILICON
SEAL SHORE HARDNESS 50 - 60
ACCESSORIES SHROUD, EARTH TAG, STOPPER,REDUCER,ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST)
GLAND STANDARD BS 6121 , IS/IEC 60079-0:2011 ,IS/IEC 60079-1:2007 (Reaffirmed : 2012)
FLAMEPROOF PROTECTION IS/IEC 60079-1:2007 (Reaffirmed : 2012)
INGRESS PROTECTION IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014)
APPROVAL OUR AEFP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD

Gland Consist Of Following Parts:

  • LOCK NUT
  • ENTRY SEAL RING
  • GLAND NIPPLE
  • INNER SEAL RING
  • ARMOUR CLAMPING RING
  • GLAND BODY
  • OUTER SEAL
  • COMPRESSION NUT
No.

SIZE

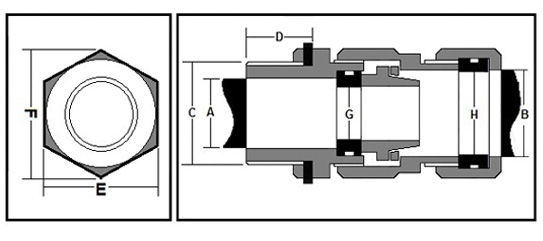

 H G E F C D CABLE DIMENSIONS
(THREAD)
(A/F) (A/C) ET MM (THREAD
LENGTH)

A

UNDER
ARMOUR DIA

B

OVER
ALL DIA

1 DNGFP 01SSA 12.00 8.50 19.50 22.50 1/2"ET M12 25 8.00 10.0
2 DNGFP 01SS 13.50 9.00 22.00 25.00 3/4"ET M20 25 8.00 12.0
3 DNGFP 01S 17.50 11.00 25.00 29.00 3/4"ET M20 25 10.00 16.5
4 DNGFP 01 19.50 14.50 27.50 32.00 3/4"ET M20 25 12.50 18.0
5 DNGFP 01A 19.50 14.50 27.50 32.00 1"ET M25 25 12.50 18.0
6 DNGFP 02 21.00 16.00 29.00 34.00 1"ET M25 25 14.00 20.0
7 DNGFP 02A 21.00 16.00 29.00 34.00 3/4"ET M20 25 14.00 20.0
8 DNGFP 03 23.50 18.00 31.00 36.00 1"ET M25 25 16.00 23.0
9 DNGFP 04 27.50 21.00 37.00 43.00 1"ET M25 25 19.00 26.0
10 DNGFP 04A 27.50 21.00 37.00 43.00 1.1/4"ET M32 25 19.00 26.0
11 DNGFP 05 31.50 25.00 41.00 47.00 1.1/4"ET M32 25 23.00 30.0
12 DNGFP 05A 31.50 25.00 41.00 47.00 1.1/2"ET M40 25 23.00 30.0
13 DNGFP 06 34.00 28.00 46.00 53.00 1.1/2"ET M40 25 26.00 33.0
14 DNGFP 06A 34.00 28.00 46.00 53.00 1.1/4"ET M32 25 26.00 33.0
15 DNGFP 07 38.00 31.00 50.50 58.00 1.1/2"ET M40 25 29.00 37.0
16 DNGFP 08 42.00 36.00 56.00 64.00 2"ET M50 25 34.00 41.0
17 DNGFP 09 47.00 41.00 59.00 67.00 2"ET M50 25 39.00 46.0
18 DNGFP 010 53.00 45.00 66.00 76.00 2"ET M50 25 43.00 52.0
19 DNGFP 010A 53.00 45.00 66.00 76.00 2.1/2"ET M63 25 43.00 52.0
20 DNGFP 011S 57.50 51.00 74.00 85.00 2.1/2"ET M63 25 49.00 56.0
21 DNGFP 011 61.50 55.00 79.00 92.00 2.1/2"ET M63 25 53.00 60.0
22 DNGFP 012 68.00 62.00 84.00 97.00 3"ET M75 25 60.00 66.0
23 DNGFP 013A 74.00 67.00 90.00 103.00 3"ET M75 25 65.00 72.0
24 DNGFP 013 79.00 73.00 99.00 113.00 3.1/4"ET M82 25 71.00 78.0
25 DNGFP 014 86.00 80.00 105.00 122.00 3.1/2"ET M90 25 78.00 84.0
26 DNGFP 015 96.00 89.00 116.00 134.00 4"ET M100 25 87.00 94.0
27 DNGFP 016 106.00 103.00 130.00 149.00 4.1/2"ET M110 25 10.00 104.0
