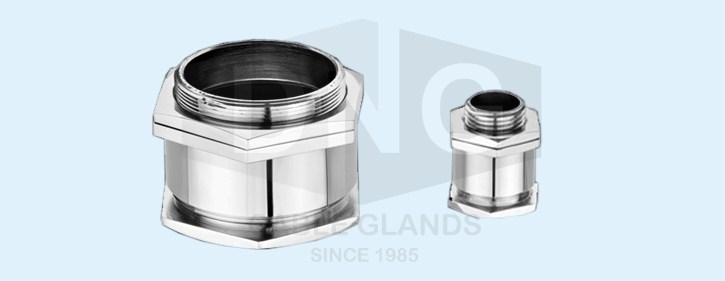

Single Compression Medium Duty Cable Gland

Single Compression Medium Duty Cable Gland


These Glands Are Used With Both Indoor And Outdoor, In All Climatic Conditions As It Is Weatherproof & Dust Proof. These Glands Are Available In Different Sizes And Suitable For All Cables Up To 1000 Sq.Mm And Control Cables Up To 61 Cores.

SIZE 3/8”- 10 MM To 4”-100 MM
ENTRY THREAD ET
ALTERNATE THREAD METRIC, NPT, PG, METRIC, BSP
GLAND MATERIAL BRASS (IS-319)
ALTERNATE MATERIAL ALUMINIUM, S.S, M.S
OPERATING TEMPERATURE -30 C TO +100 C
FINISH NICKEL PLATED
ALTERNATE FINISH TIN , CHROME
SEAL MATERIAL NATURAL / NITRILE
ACCESSORIES SHROUD, EARTH TAG (SUPPLIED SEPARATELY UPON REQUEST)
GLAND STANDARD IS-12943
INGRESS PROTECTION IP 55

Gland Consist Of Following Parts:

  • LOCK NUT
  • GLAND BODY
  • GLAND BUSH
  • MS WASHER (3 NOS)
  • RUBBER SEAL
  No.   SIZE   A/F   D1   D2   D3   C
(THREAD) 		  D
(THREAD
LENGTH) 		CABLE DIMENSION
A
UNDER
ARMOUR
DIA 		B
OVERALL
DIA
1 3/8”-10mm 18.00 12.70 10.40 12.70 5/8" ET 6.50 8.00 10.00
2 1/2”- 12mm 20.50 15.40 12.45 12.70 5/8" ET 7.00 10.0 14.00
3 5/8”-16mm 20.50 15.40 12.20 15.50 3/4" ET 7.00 10.0 14.00
4 3/4"-19mm 21.50 17.80 14.65 15.50 3/4" ET 7.00 13.0 16.50
5 7/8”-22mm 24.50 20.30 16.20 15.50 3/4" ET 7.50 15.0 19.00
6 1”-25mm 28.50 23.50 19.00 21.60 1" ET 7.50 18.0 22.00
7 1.1/8”-28mm 32.80 28.00 24.00 24.90 1.1/8" ET 8.80 22.0 26.00
8 1.1/4”-32mm 36.00 31.00 27.50 27.70 1.1/4" ET 8.90 26.0 30.00
9 1.3/8”-35mm 40.60 35.50 30.00 29.50 1.3/8" ET 9.50 29.0 34.00
10 1.1/2”-38mm 44.20 38.90 33.00 33.60 1.1/2" ET 9.50 32.0 37.00
11 1.3/4”-45mm 50.00 44.60 39.00 40.10 1.3/4" ET 10.00 38.0 43.00
12 2”-50mm 58.00 51.80 46.75 45.20 2" ET 10.80 45.0 50.00
13 2.1/4”-57mm 63.50 58.20 49.80 52.00 2.1/4" ET 10.80 48.0 56.00
14 2.1/2”-63mm 69.00 62.70 55.75 58.40 2.1/2" ET 12.00 54.0 61.00
15 2.3/4”-70mm 76.00 69.20 61.00 65.10 2.3/4" ET 12.00 60.0 67.00
16 3”-75mm 82.50 75.40 65.50 71.00 3" ET 13.50 64.0 73.00
17 3.1/4”-82mm 89.00 82.00 74.00 76.20 3.1/4" ET 13.50 72.0 80.00
18 3.1/2”-88mm 95.00 85.00 78.00 83.00 3.1/2” ET 13.50 76.0 82.00
19 4”-100mm 108.00 100.00 90.00 92.00 4” ET 14.00 88.0 98.00
