Standard	EN 50262 : 1999

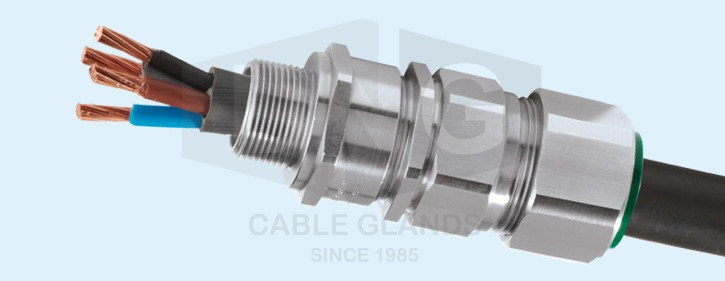

Application	These type of Cable Glands are suitable for indoor and outdoor use, appropriate for single wire armoured, plastic or rubber sheathed cable. Provides grip to the cable with outer and inner seals. Used popularly in most cliamatic conditions. Weatherproof and Waterproof.
Ingress Protection	IP 66
Material	Brass
Finish	Plain Brass or Nickel Plated

TECHNICAL DATA

Size	Thread Size 'C'	Thread Length 'D'	MAX 'A'	MAX 'B'	A/F	A/C
Size	Thread Size 'C'	Thread Length 'D'	Cable Range
20S	M20	15.00	12.00	15.00	24.00	26.80
20L	M20	15.00	14.25	21.00	27.50	30.50
25L	M25	15.00	20.15	26.50	36.60	40.80
32L	M32	15.00	26.50	34.50	45.50	51.00
40L	M40	15.00	32.50	471.00	52.00	59.00
50S	M50	15.00	38.50	46.50	60.50	67.00
50L	M50	15.00	44.50	53.25	69.00	78.50
63S	M63	15.00	52.00	59.50	76.00	84.50
63L	M63	15.00	56.50	65.50	79.50	89.00
75S	M75	15.00	62.00	74.00	79.50	88.50
75L	M75	15.00	68.50	78.50	96.00	108.00
